Product Data:
| Model | JF-C01B-M |

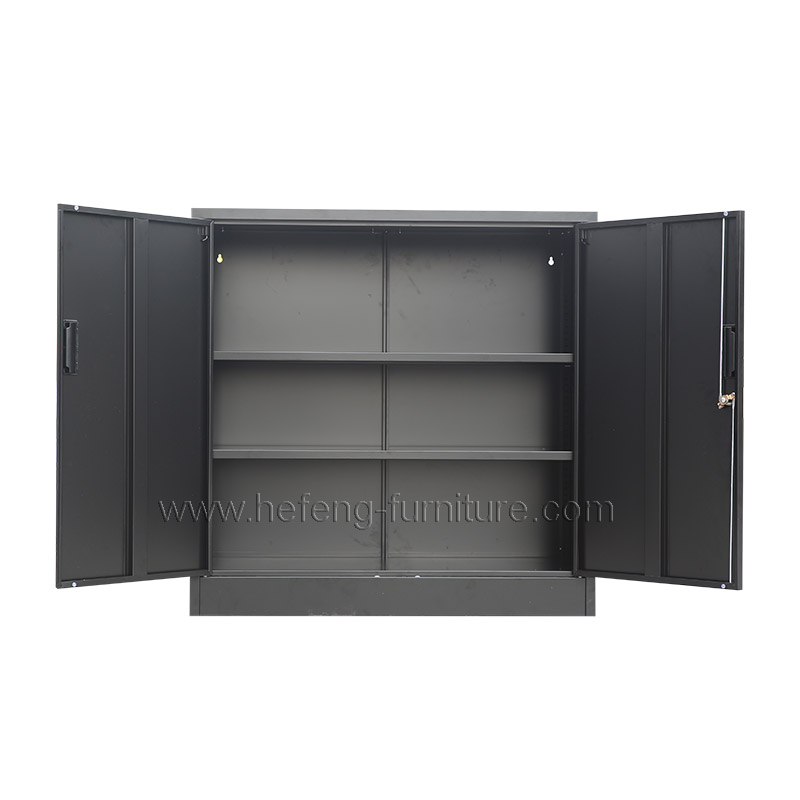

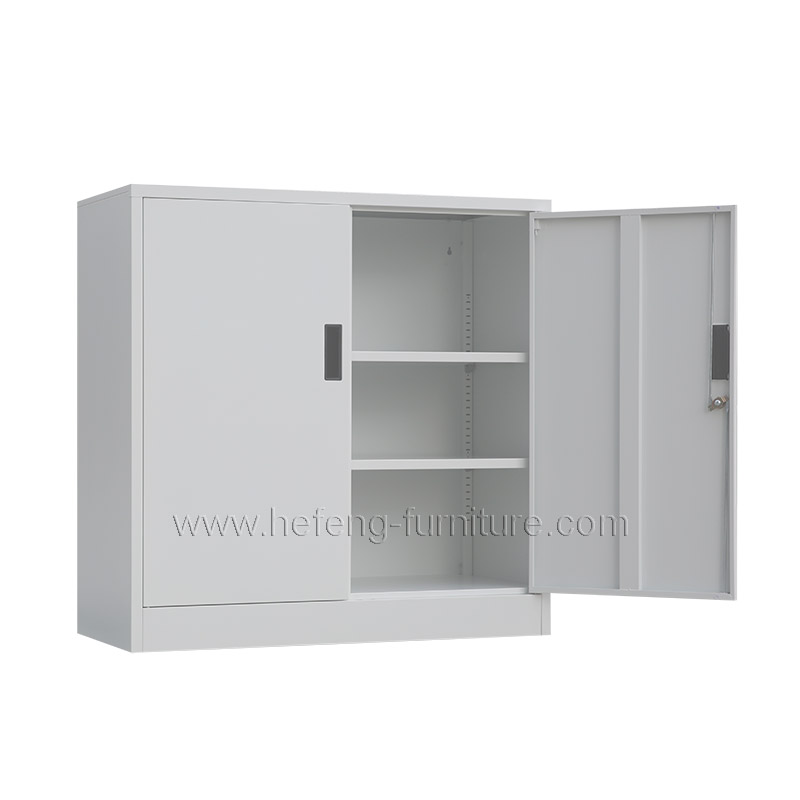

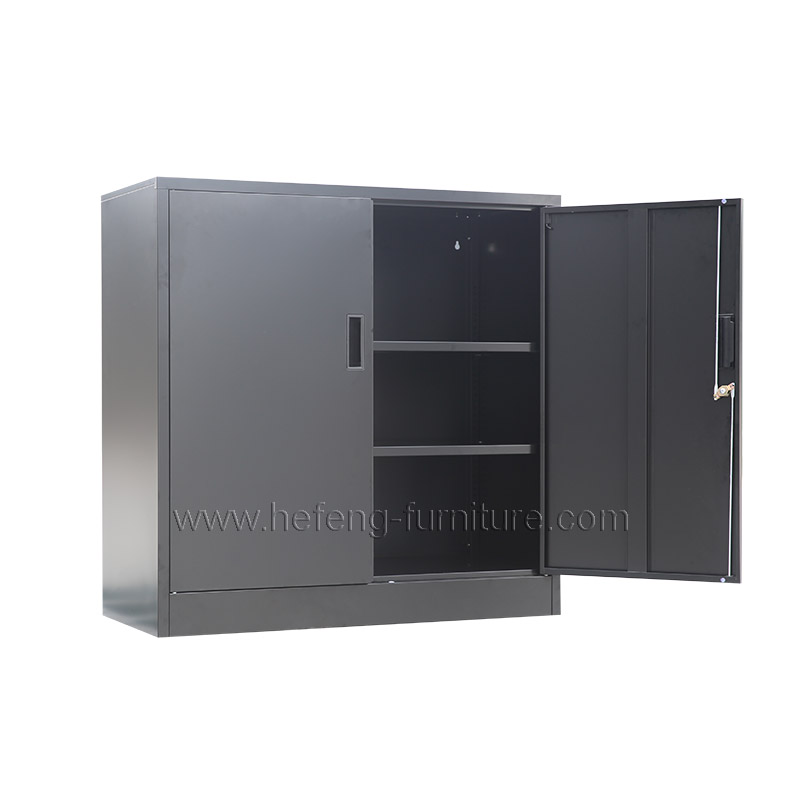

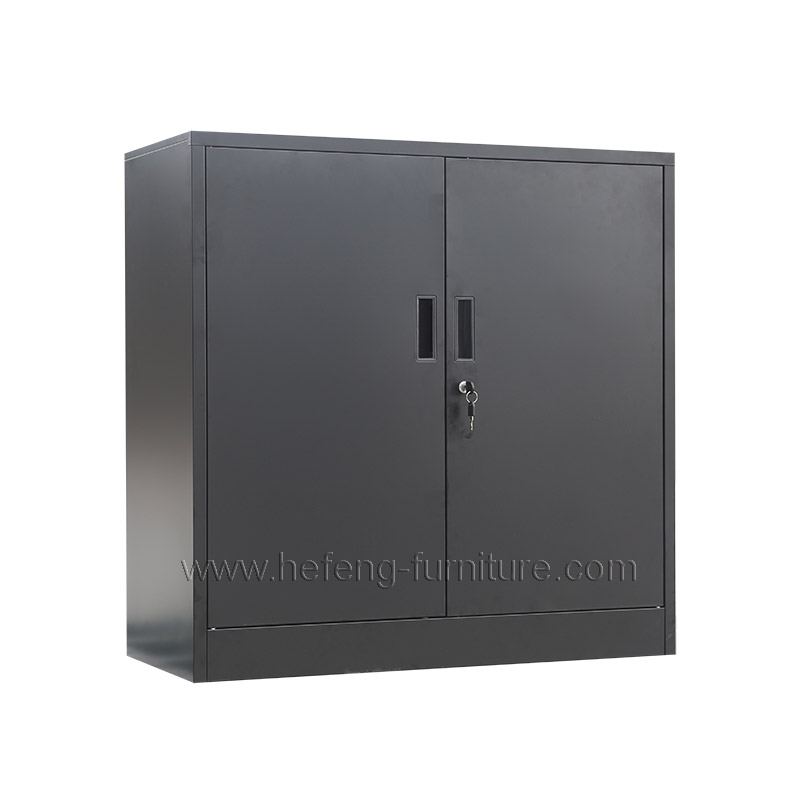

| Name | Small Metal Storage Cabinet with Locking Doors |
| Product Size | H900 * W900 * D400mm |
| Package Size | H942 * W490 * D149=0.0688CBM |
| Loading Qty | 988 Pcs/40’HQ, 407 Pcs/20’GP |
| Material | Heavy gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colour. |
| Fittings | One shelf. |
| Accessories | 2 keys, assembly screws. |
- Knock down and easy assembling construction.
- Different locks for option.
- Different colour for option.
- With huge loading capacity for each shelf.
- Master key available.
6 steps to assemble the Metal Storage Cabinets.
- Connect the left side and back plate with self-tapping screws(5×12).
- Connect the right plate and back plate in the same way as the first step.
- Fix the door frame onto both of the side plates.
- Install the top,bottom plate.
- Install the shelves.
- Install the doors as the sign, adjust each parts till fit well after installation.
