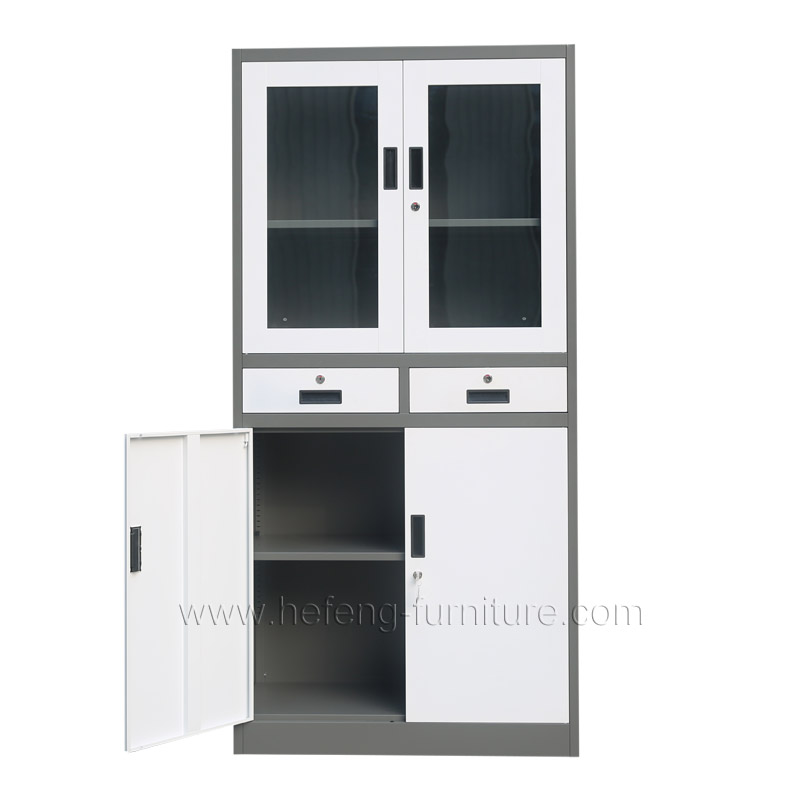

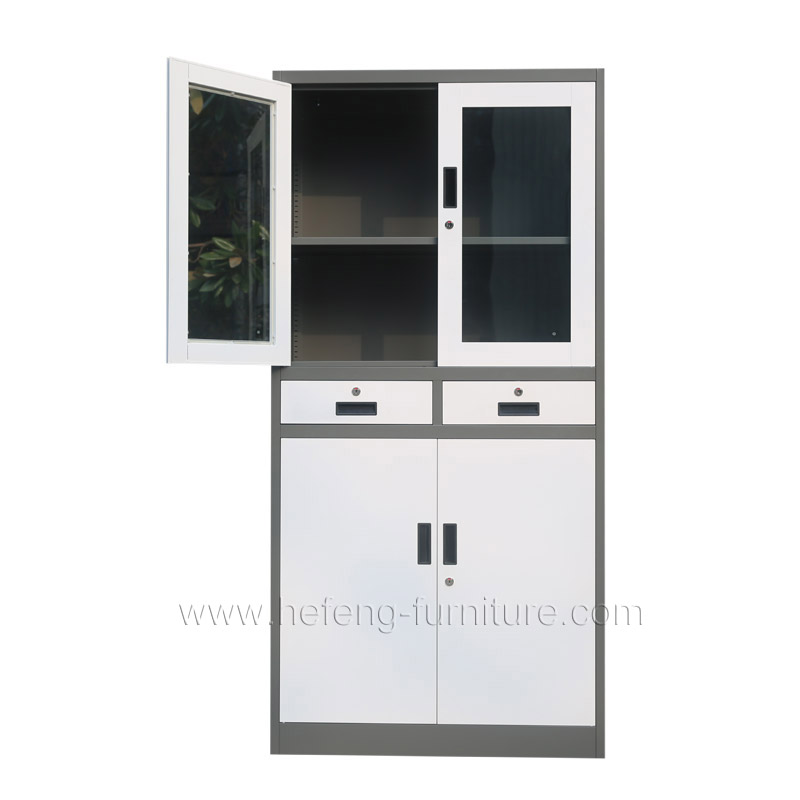

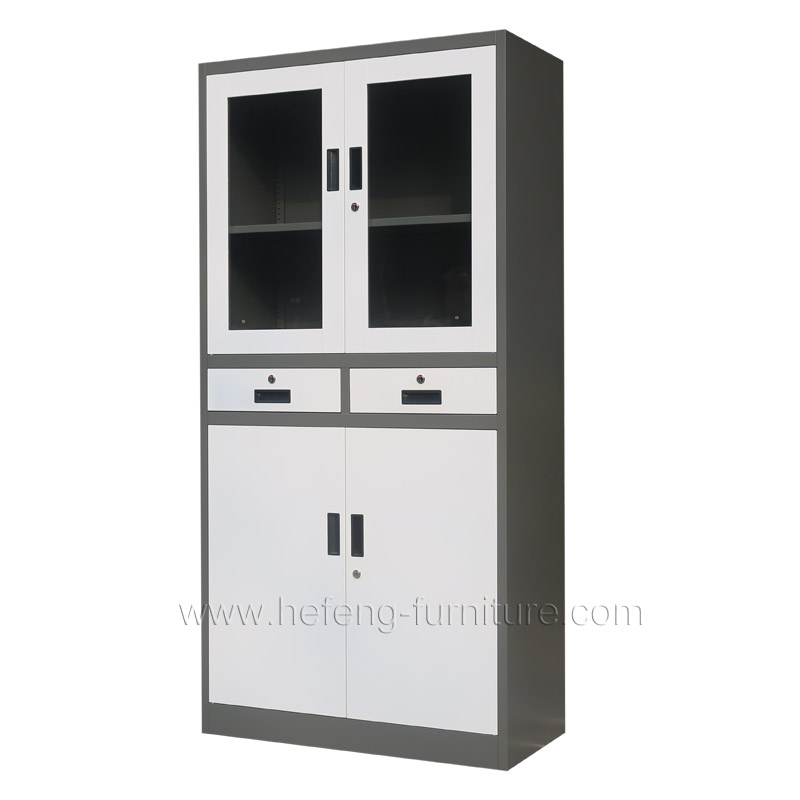

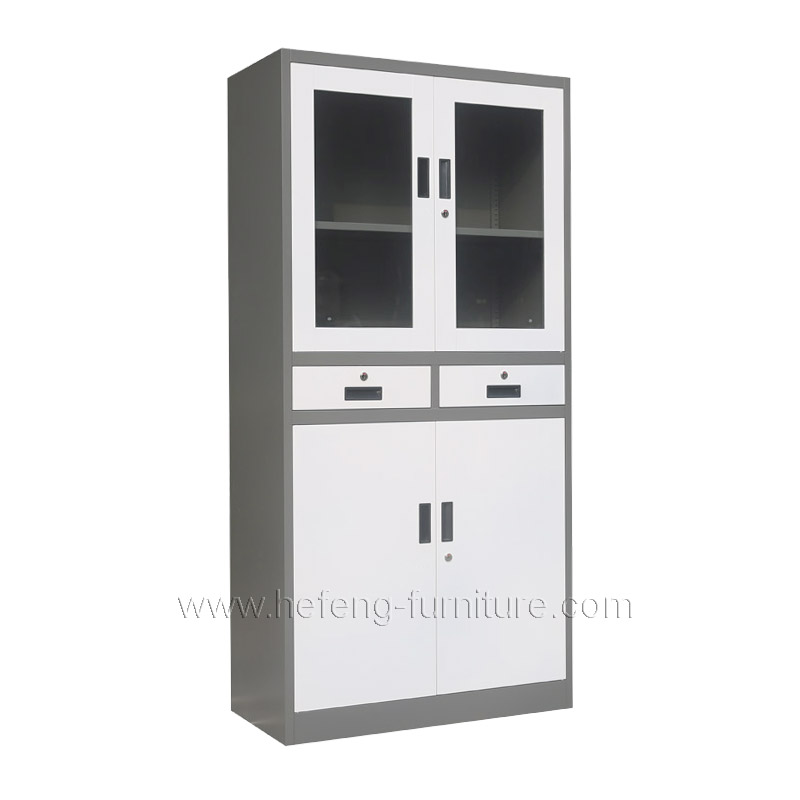

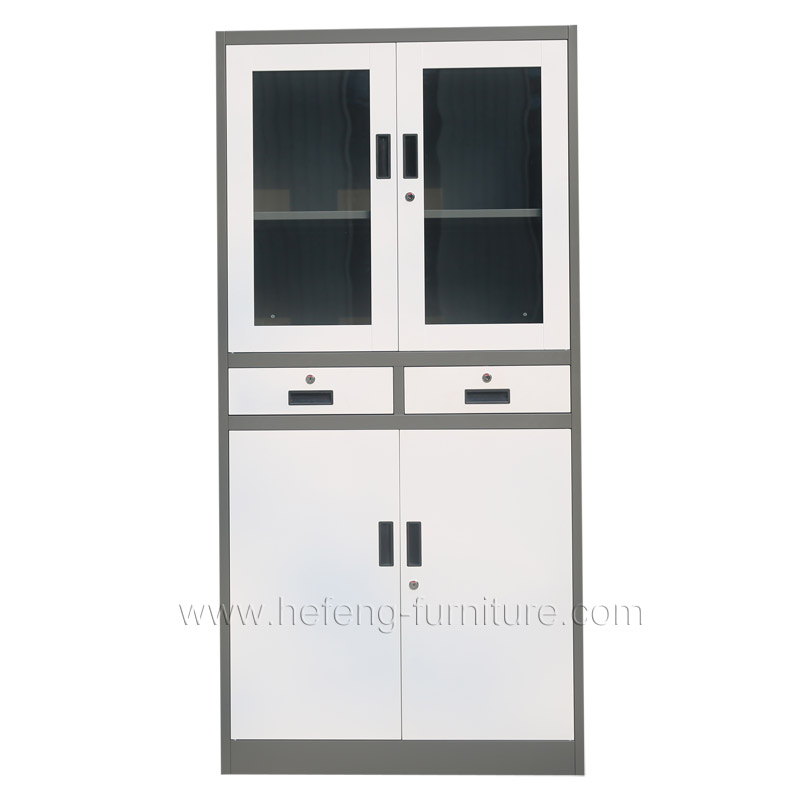

Steel Office File Cabinet

Product Data:

 Model JF-C17
 Name Steel Office File Cabinet
 Product Size H1850 * W900 * D400mm
 Package Size H1880 * W930 * D75mm = 0.1311CBM
 Material Heavy gauge cold-rolled steel plate.
 Pre-treatment Water wash, chemical wash, phosphating.
 Finish Durable electrostatic powder coating.
 Colour Classic grey, two-tone option, or other customized colour.
 Fittings 2 drawers, 4 shelves.
 Accessories 8 keys, assembly screws.

Features of Steel Office File Cabinet

  • Knock down and easy assembling construction.
  • Different locks for option.
  • Different colour for option.
  • With huge loading capacity for each shelf.
  • Master key available.
  • Core removable locks available.

4 steps to assemble the Drawer of the Steel Office File Cabinet.


1, Bend the drawer box as the drawing

2, Install the front and back plate of drawer

3, Install the inner slide as the drawing

4, Intall the drawer and front panel as the drawing


8 steps to assemble the Steel Office File Cabinet.


1, Bolt the left plate and back plate with self-taping screws(5×12)

2, Bolt the other side plate in the same way as the first step

3, Fix the door frame onto both of side plates

4, Intall the division plate as the drawing

5, Fix the top pate ,bottom plate and middle plate with self-tapping screw 5*12

6,Install the outer slide and drawer as the drawing

7,Install the shelves as the drawing

8,Adjust each part till fit well after installation
