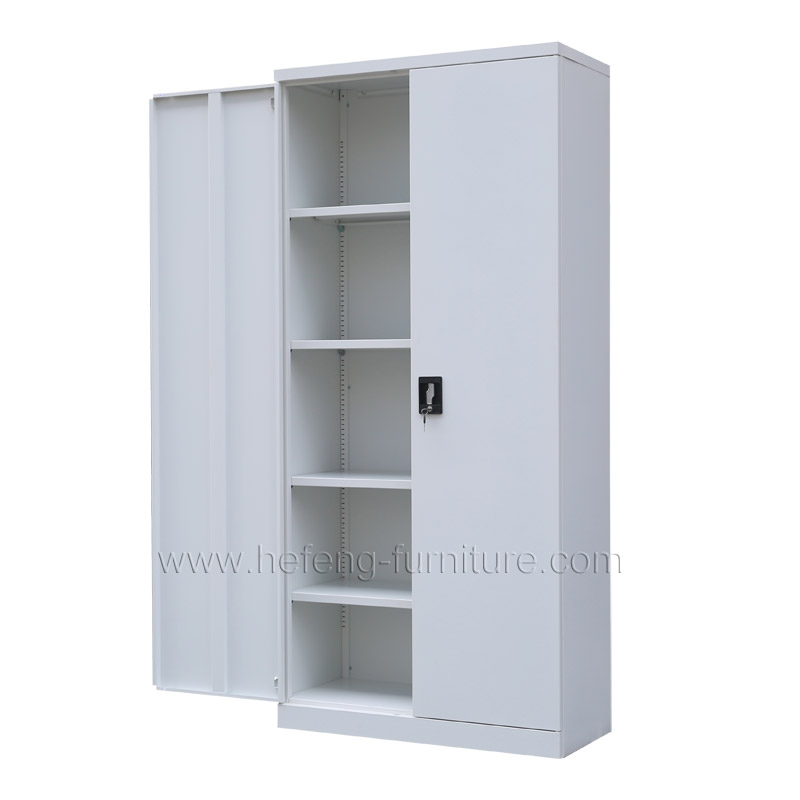

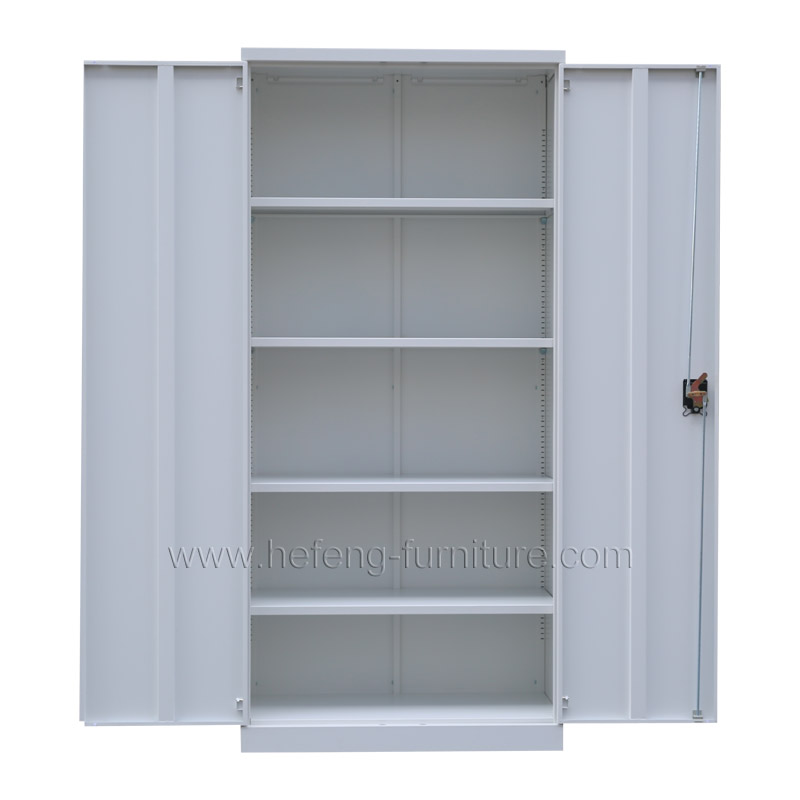

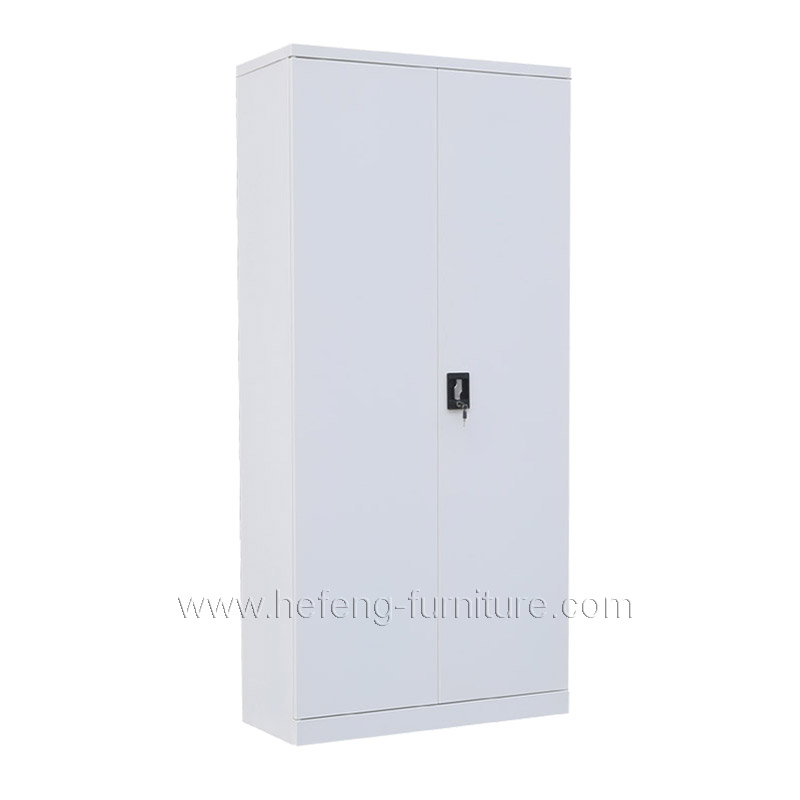

2 Door Metal Cabinets

Product Data:

 Model JF-C002
 Name 2 Door Metal Cabinets
 Product Size H1850 * W900 * D430mm
 Package Size H1880 * W490 * D180mm = 0.1658CBM
 Material Heavy gauge cold-rolled steel plate.
 Pre-treatment Water wash, Chemical wash, Phosphating.
 Finish Durable Electrostatic powder coating.
 Colour Classic grey,two-tone option,or other customized colour.
 Fittings 4 shelves.
 Accessories 2 Keys, assembly Screws.

Features of 2 Door Metal Cabinets

  • Knock down and easy assembling construction.
  • Different locks for option.
  • Different colour for option.
  • Adjustable shelves
  • With huge loading capacity for each shelf.
  • Reinforced doors for strength.
  • Master key available.

12 steps to assemble the 2 Door Metal Cabinets.




1, Connect the left side and left back plate together

2, Connect the right back plate and left back plate together

3, Connect the right side and right back plate together

4, Fix the inner bottom skirting with M4 screws. (Fix the screws into the inside 4 holes)

5, Put the outer bottom skirting onto the inner bottom panel

6, Install the bottom plate.(The front border of bottom plate should cover the upper border of outer bottom skirting.)

7, Install the top plate from front to back.(fix the front border with clip on the upper corner of side plate.)

8, Place the shelf holders to the required height, then place the shelves.

9, Install the doors

10, Install the adjusting feet with self-tapping screw(5×12)

11, Adjust the feet with shape “-” screwdriver and place the end caps

12, Ajust each part till fit well after installation
