Product Data:

 Model JF-1B2A

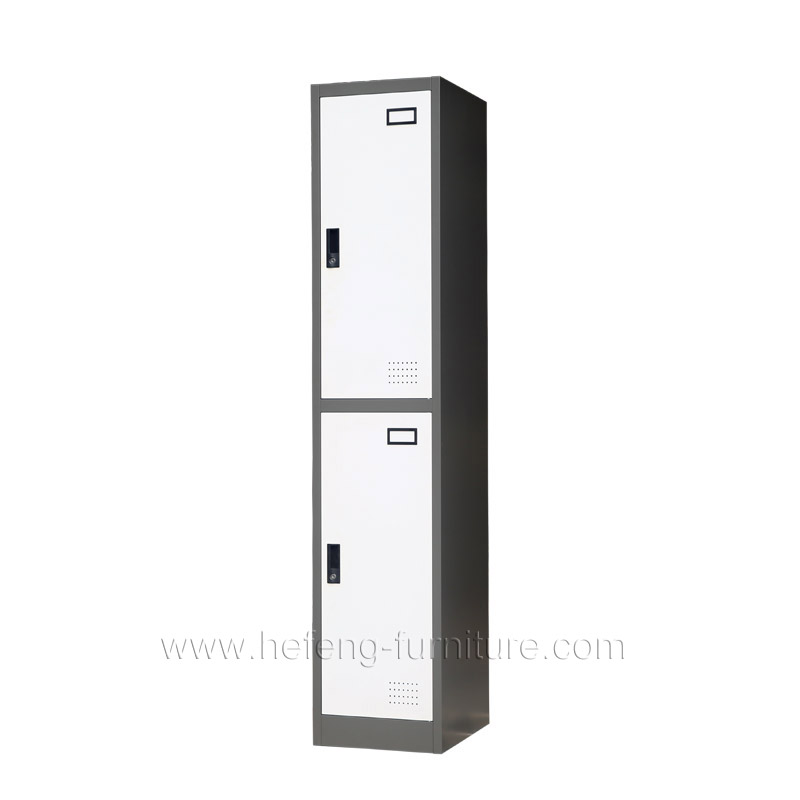

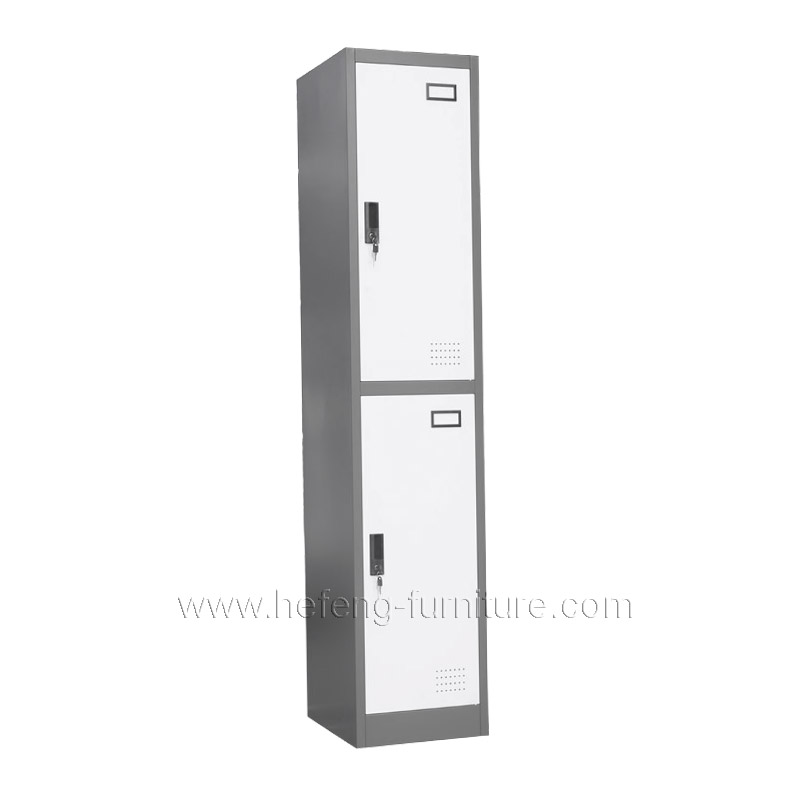

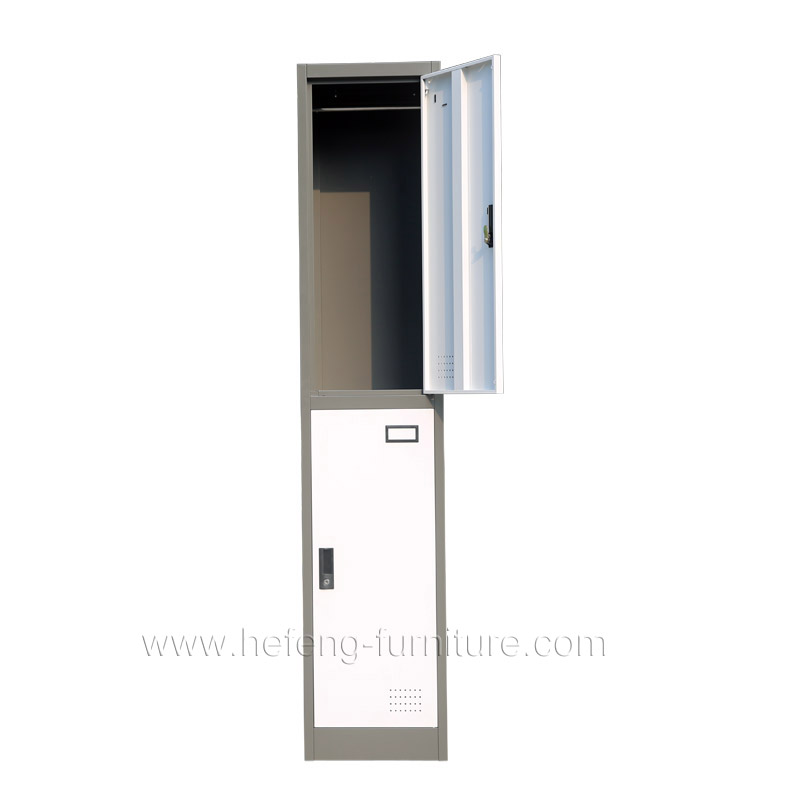

 Name 2 Tier Metal Lockers
 Product Size H1720 * W292 * D450mm
 Package Size H1650 * W480 * D78mm = 0.0618CBM
 Material  Heavy gauge cold-rolled steel plate.
 Pre-treatment  Water wash, chemical wash, phosphating.
 Finish  Durable electrostatic powder coating.
 Colour  Classic grey, two-tone option, or other customized colour.
 Fittings  Chrome coat rod, index holder, keyed camlock or padlock latch.
 Accessories  4 keys, assembly screws.

Features of 2 Tier Metal Lockers

  • Knock down and easy assembling construction.
  • Different locks for option.
  • Different colour for option.
  • Different air ventilation for option.
  • Standing legs available.
  • Sloping top available.
  • Master key available.
  • Core removable lock available.

9 steps to assemble the 2 Tier Metal Lockers.

1, Bolt the left side and back plate with self-tapping screws(5×12)

2, Bolt the right side with back plate in the same way as the first step

3, Fix the door frame onto both of the side plates

4, Install the bottom plate as the sign

5, Install the top plate as the sign

6, Install the middle plates

7, Install the hanging rod as the sign

8, Install the doors from up to down

9, Adjust each parts till fit well after installation.
