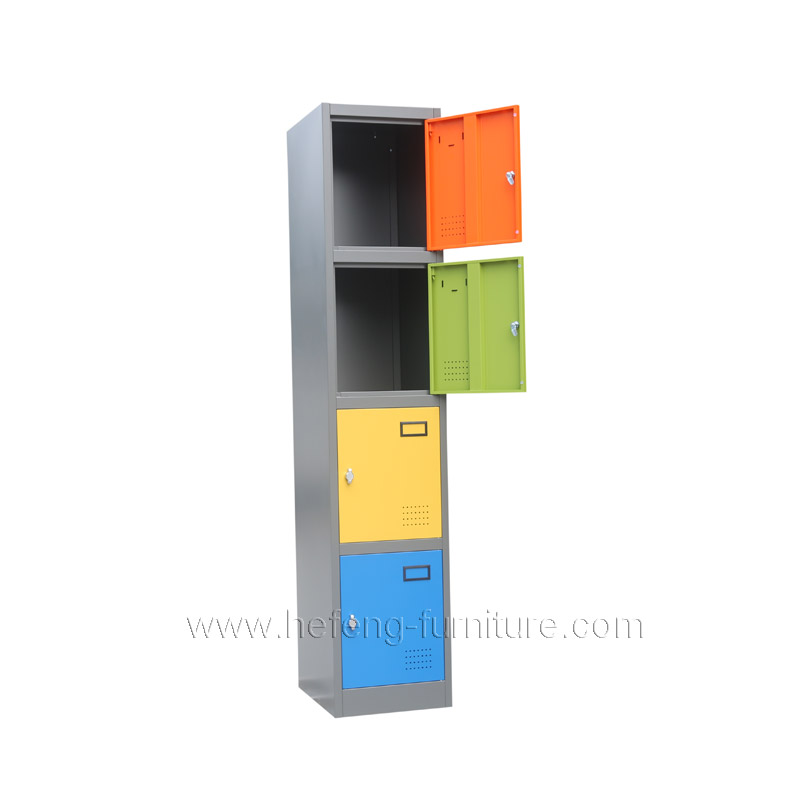

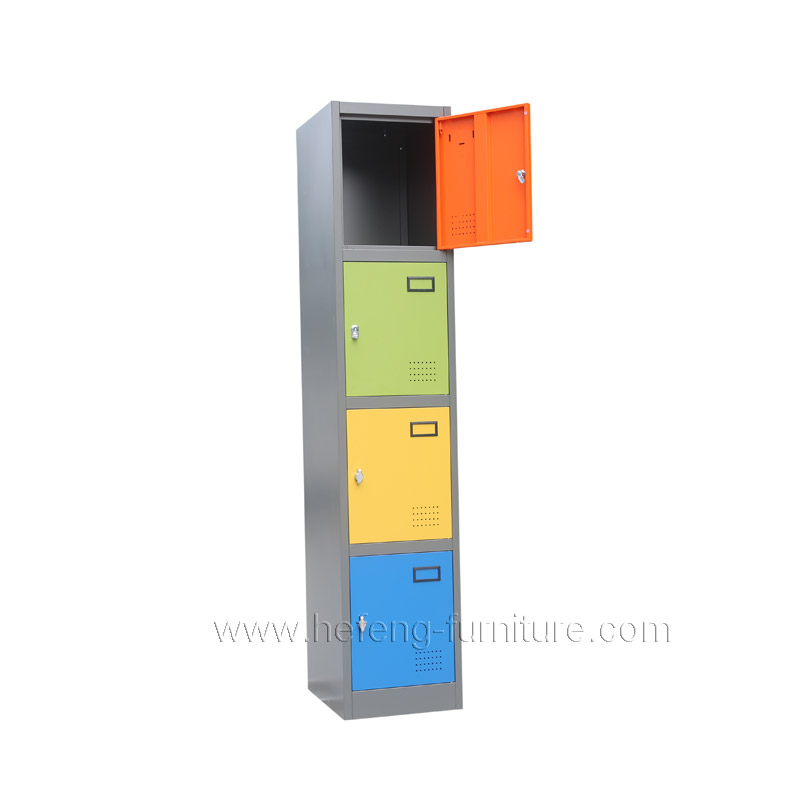

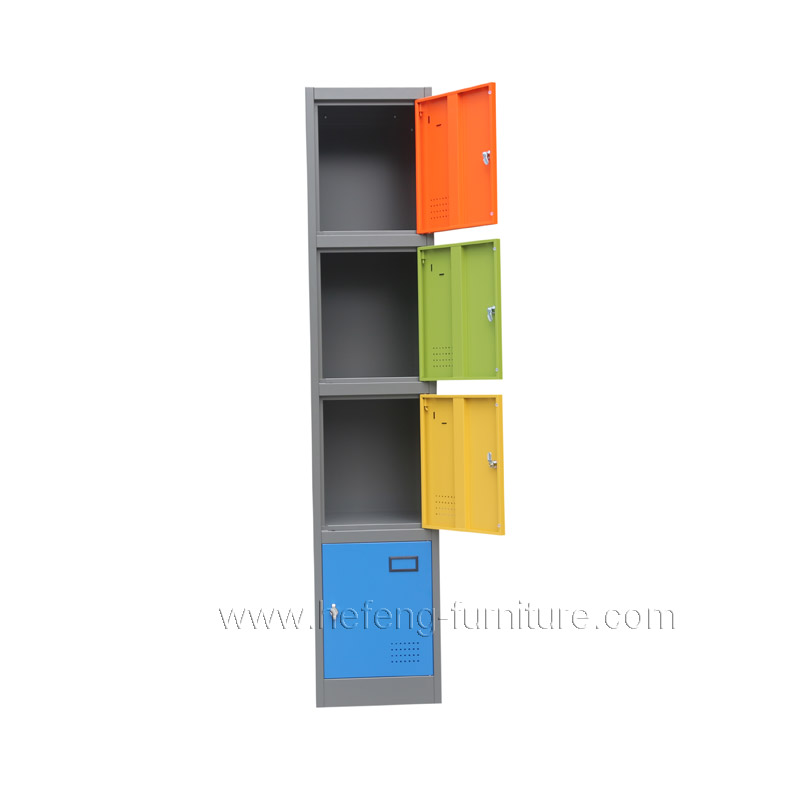

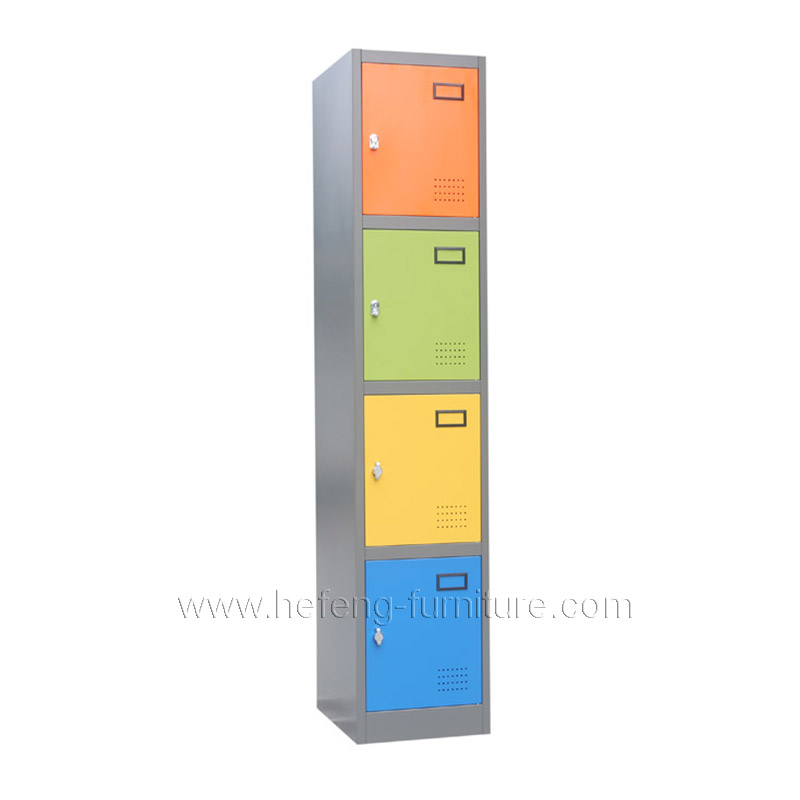

4 tier steel lockers

Product Data:

 Model JF-1B4A
 Name 4 Tier Secure Lockers
 Product Size H1850 * W380 * D450mm
 Package Size H1880 * W480 * D78mm = 0.0704CBM
 Material Heavy gauge cold-rolled steel plate.
 Pre-treatment Water wash, chemical wash, phosphating.
 Finish Durable electrostatic powder coating.
 Colour Classic grey, two-tone option, or other customized colour.
 Fittings Index holder, keyed camlock or padlock latch.
 Accessories 8 keys, assembly screws.

Features of 4 Tier Secure Lockers

  • Knock down and easy assembling construction.
  • Different locks for option.
  • Different colour for option.
  • Different air ventilation for option.
  • Standing legs available.
  • Sloping top available.
  • Master key available.
  • Core removable lock available.

9 steps to assemble the 4 Tier Secure Lockers.

1, Bolt the left side and back plate with self-tapping screws(5×12)

2, Bolt the right side with back plate in the same way as the first step

3, Fix the door frame onto both of the side plates

4, Install the bottom plate as the sign

5, Install the top plate as the sign

6, Install the middle plates

7, Install the doors from up to down

8, Adjust each part till fit well

9, Installation finished
