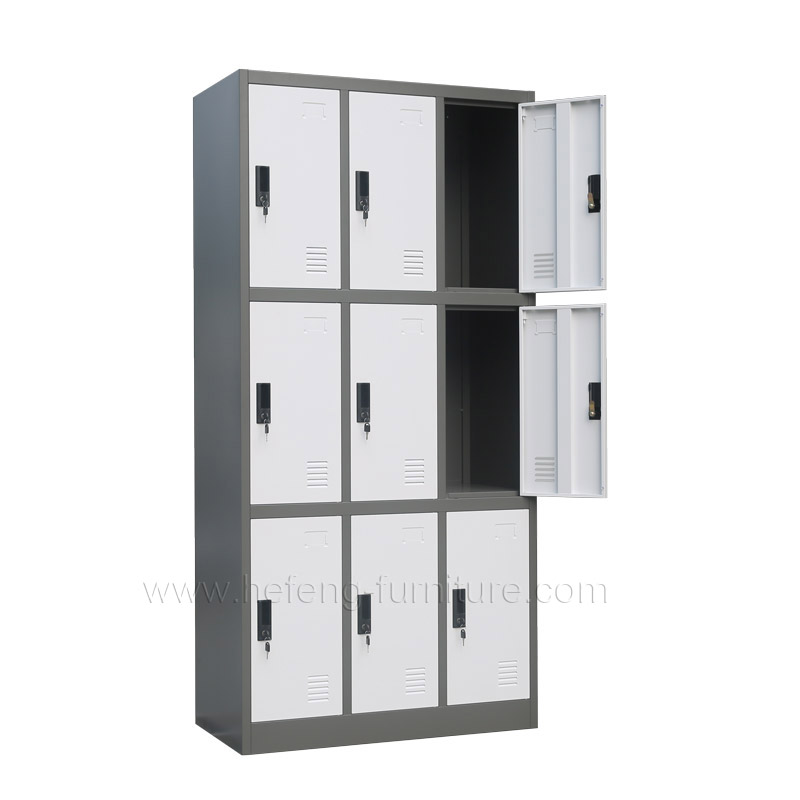

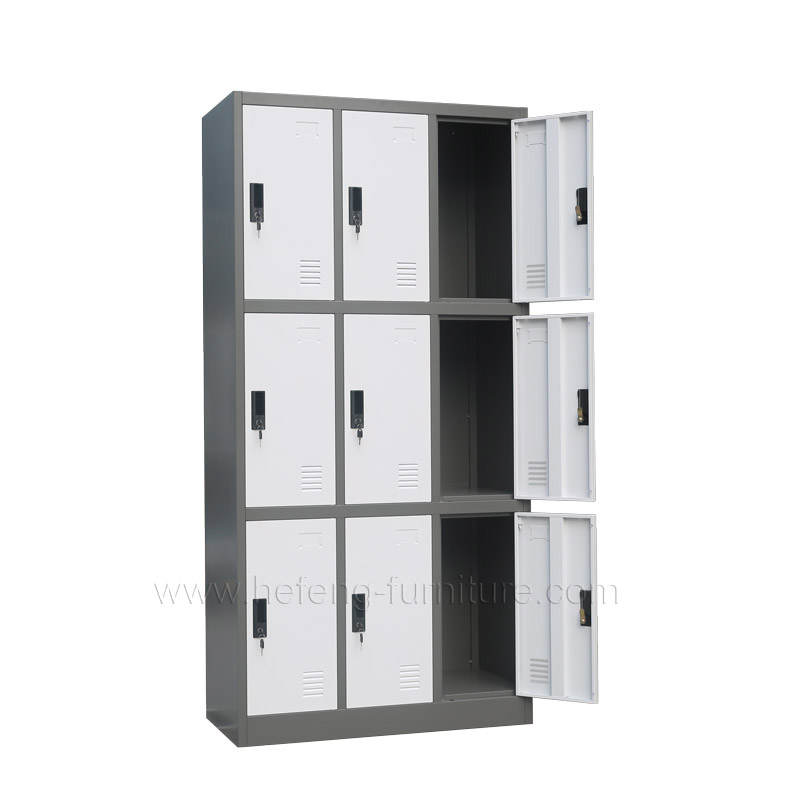

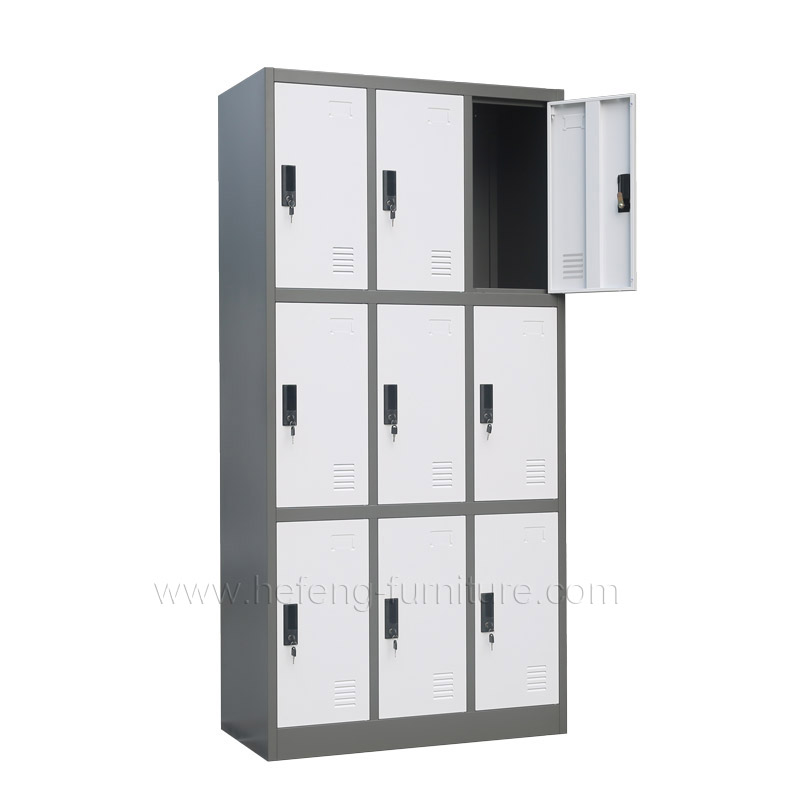

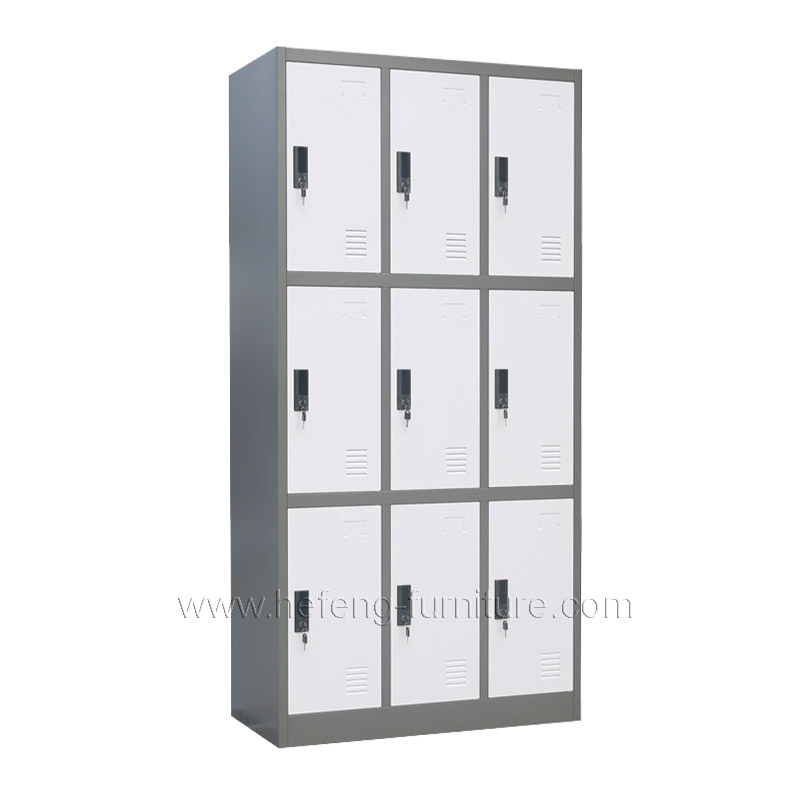

9 Door Uniform Lockers

Product Data:

Model JF-3B3A
Name 9 Door Uniform Lockers
Product Size H1720 * W826 * D450mm
Package Size H1650 * W930 * D75mm = 0.1151CBM
Loading Qty 590 Pcs/40’HQ, 243 Pcs/20’GP
Material Heavy gauge cold-rolled steel plate.
Pre-treatment Water wash, chemical wash, phosphating.
Finish Durable electrostatic powder coating.
Colour Classic grey, two-tone option, or other customized colour.
Fittings Index holder, keyed camlock or padlock latch.
Accessories 18 keys, assembly screws.
  • Knock down and easy assembling construction.
  • Different locks for option.
  • Different colour for option.
  • Different air ventilation for option.
  • Standing legs available.
  • Sloping top available.
  • Master key available.
  • Core removable lock available.

9 steps to assemble the 9 Door Uniform Lockers.

  1. Connect the left side plate with back plate by self-tapping screws(5×12).
  2. Connect the right side plate with back plate.
  3. Fix the door frame onto both of the side plates.
  4. Install the top plate and fix it with screws(5×12).
  5. Install the bottom plate and fix it with screws(5×12).
  6. Install the middle plates.
  7. Install the division plates. (Pay attention to the difference of upper and lower ones, the upper one is small and lower one is big.)
  8. Install the standing feet with screws(5×12).
  9. Adjust each part till fit well after installation.
