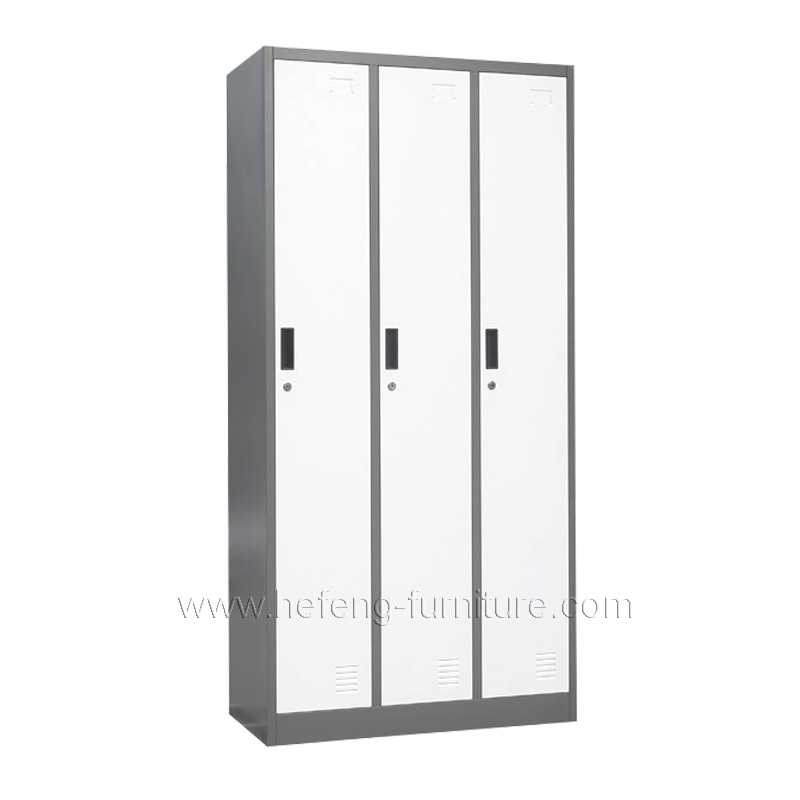

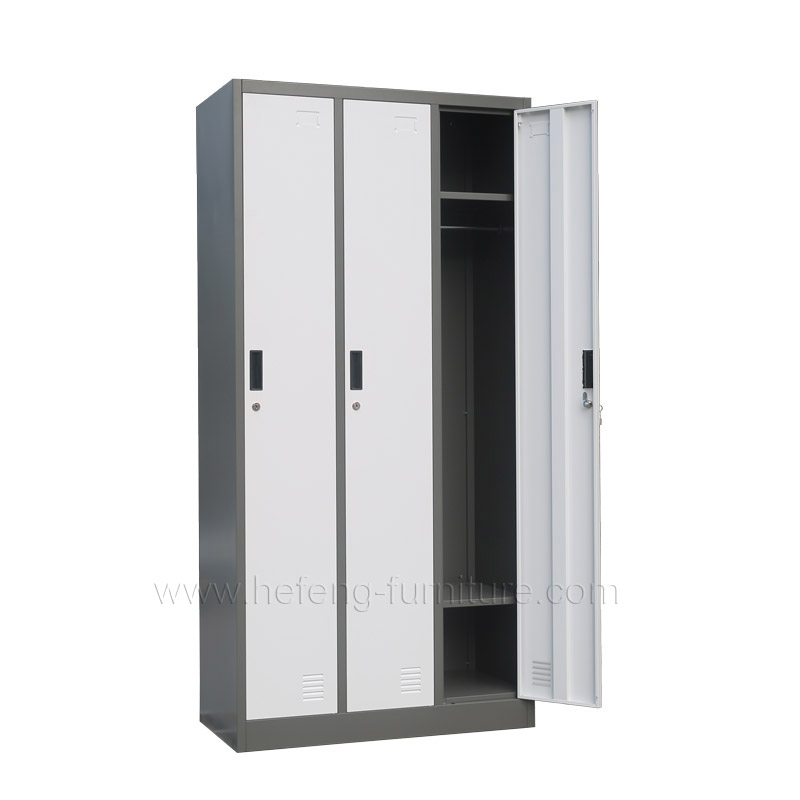

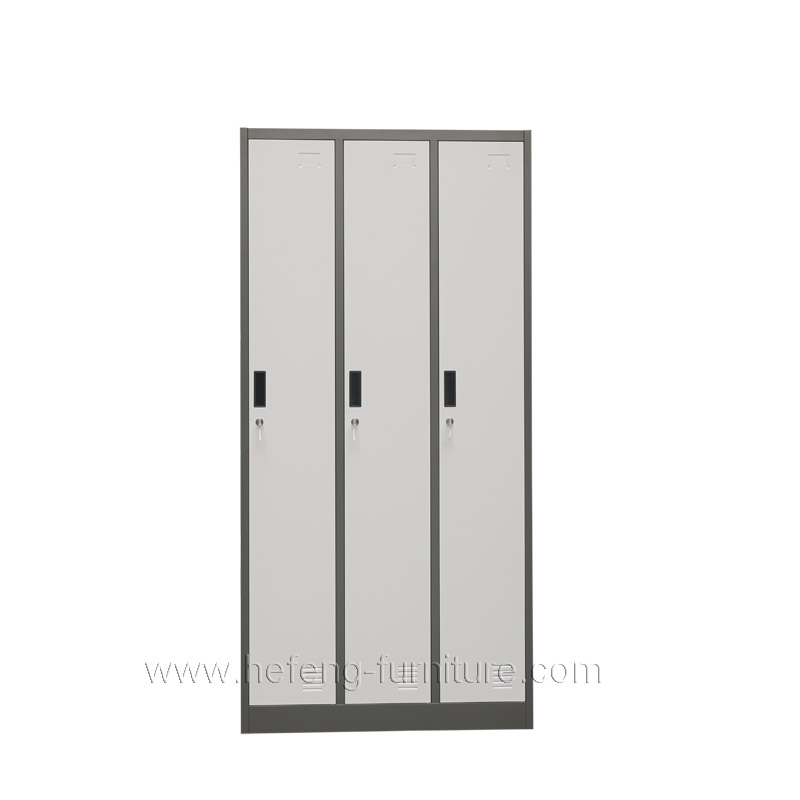

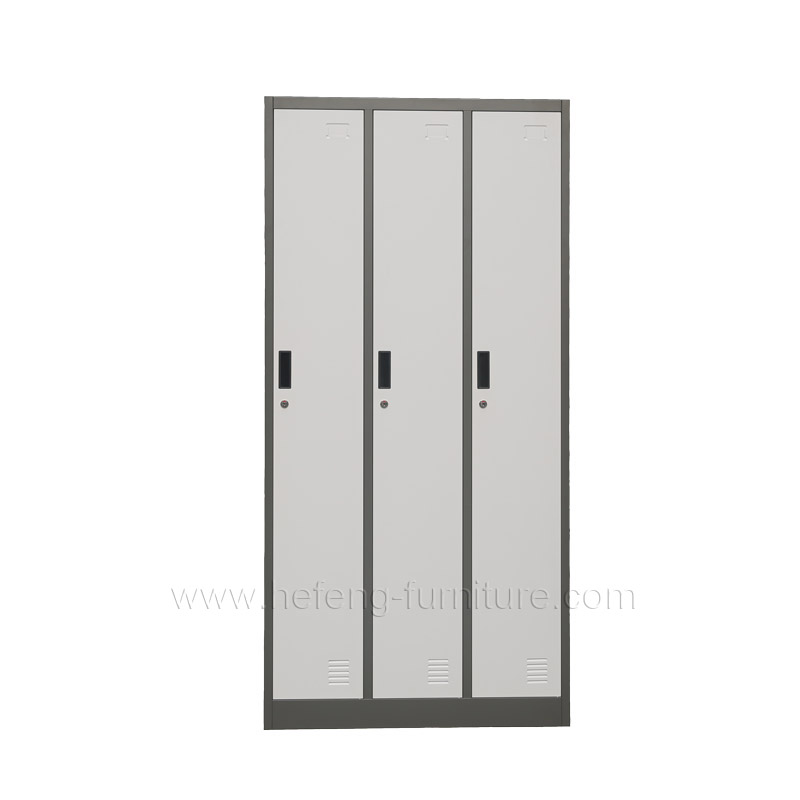

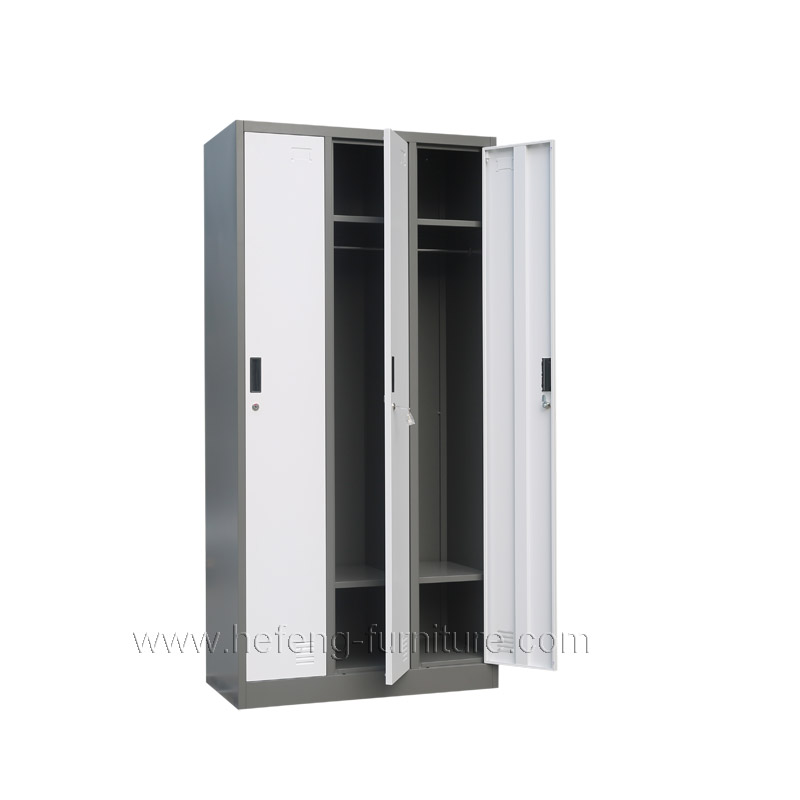

3 Door Steel Clothing Lockers

Product Data:

Model JF-3B1A
Name 3 Door Steel Clothing Lockers
Product Size H1720 * W826 * D450mm
Package Size H1650 * W930 * D75mm = 0.1151CBM
Loading Qty 590 Pcs/40’HQ, 243 Pcs/20’GP
Material Heavy gauge cold-rolled steel plate.
Pre-treatment Water wash, chemical wash, phosphating.
Finish Durable electrostatic powder coating.
Colour Classic grey, two-tone option, or other customized colour.
Fittings Chrome coat rod, index holder, keyed camlock or padlock latch.
Accessories 6 keys, assembly screws.
  • Knock down and easy assembling construction.
  • Different locks for option.
  • Different colour for option.
  • Different air ventilation for option.
  • Standing legs available.
  • Sloping top available.
  • Master key available.
  • Core removable lock available.

9 steps to assemble the 3 Door Steel Clothing Lockers.

  1. Connect the left side plate with back plate by self-tapping screws(5×12).
  2. Connect the right side plate with back plate.
  3. Fix the door frame onto both of the side plates.
  4. Install the bottom plate firstly, and put the division plate into the locker.
  5. Install the top plate, then fix the division plate as shown in the picture.
  6. Install the small shelves as shown in the picture.
  7. Install the hanging rods.
  8. Install the standing feet with screws(5×12).
  9. Adjust each part till fit well after installation.
