Product Data:
| Model | JF-C21 |

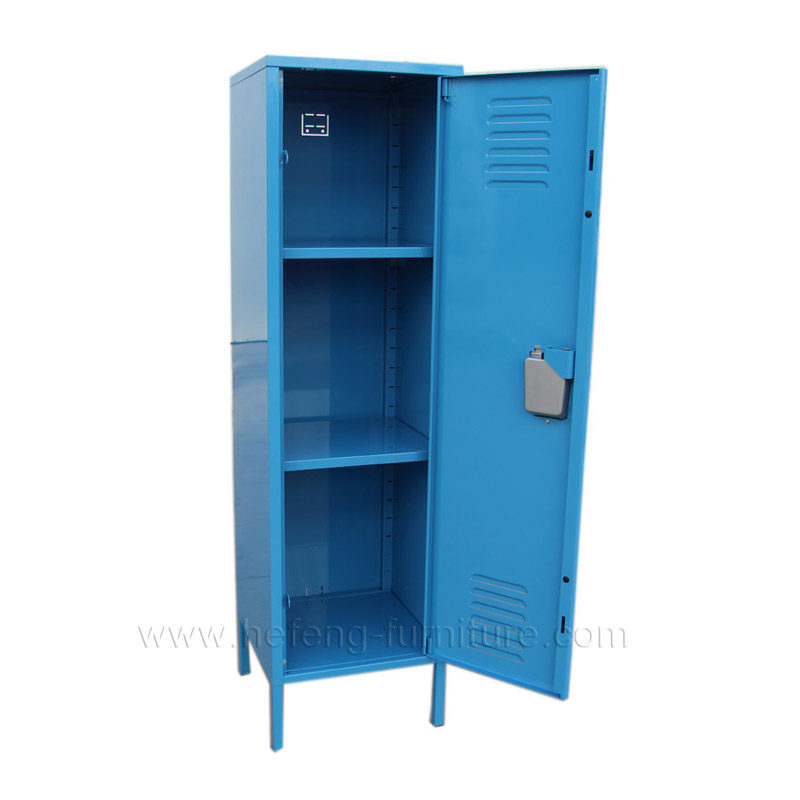

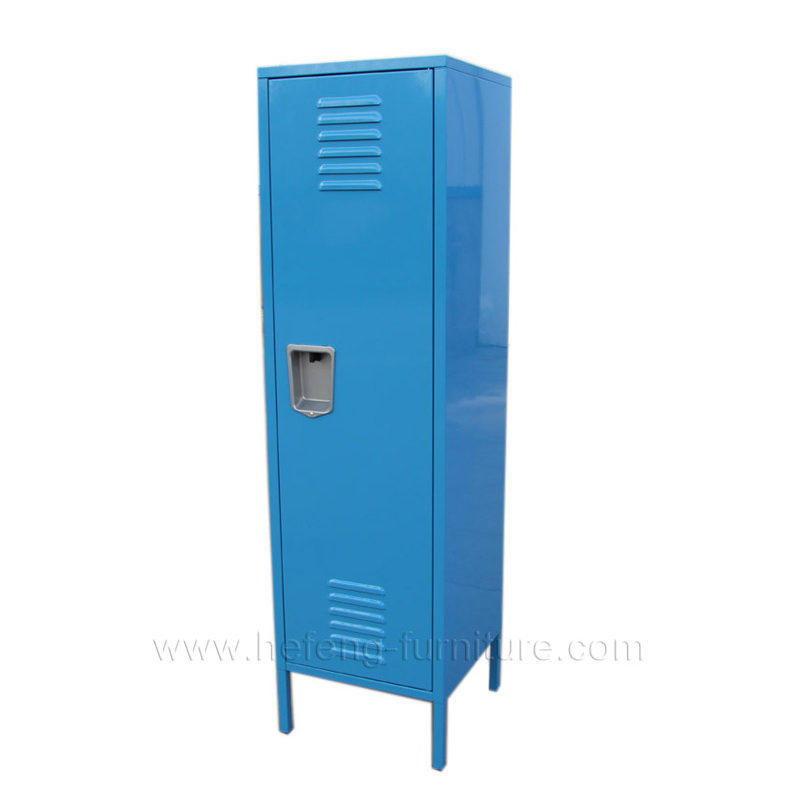

| Name | Kids Wardrobes |
| Product Size | H1370 * W381 * D381mm |
| Package Size | H1250 * W440 * D145mm = 0.0798CBM |
| Loading Qty | 852 Pcs/40’HQ, 350 Pcs/20’GP |
| Material | Heavy gauge cold-rolled steel plate. |
| Pre-treatment | Water wash, chemical wash, phosphating. |
| Finish | Durable electrostatic powder coating. |
| Colour | Classic grey, two-tone option, or other customized colour. |
| Fittings | 2 shelves. |
- Knock down and easy assembling construction.
- Adjustable shelves with dual purpose for clothes and accessories.
- With huge loading capacity for each shelf.
- Can be mounted on the wall.
- Different locks for option.
8 steps to assemble the Kids Wardrobes
- Connect the left and right side plates with bottom insert.
- Install the back plate from bottom by inclining 70 degrees.
- Connect the left and right side plates with back plate by self-tapping screws.
- Install the bottom plate from the top down by inclining 45 degrees.
- Install the top plate from front and back by inclining 30 degrees, press and connect the top plate with side plates.
- Upwarp back up plate.
- Install the shelves.
- Install the door.
